The Studio
Our most compact and versatile solution for modern backyard living.
From$28,000inc GST
Quick Specifications
Total Area~25m²
Dimensions5.9m x 4.2m x 2.5m
Ideal ForOffice, Retreat, Sleepout
BathroomBasic Facilities Included
SetupFold-out Technology
ElectricalStandard NZ Plug & Play
Single-Wing Deluxe — Pricing
| Size | Deluxe | Deluxe — Full-Wall Glass |
|---|---|---|
| 20ft Single-Wing | $28,000 | $35,000 |
| 30ft Single-Wing | $34,000 | $42,000 |
| 40ft Single-Wing | $42,000 | $52,000 |
All pricing is NZD and includes GST. Every Single-Wing home is built to our Deluxe specification (2.2m internal height). The Full-Wall Glass edition adds integrated floor-to-ceiling glazing. Each bedroom is +$1,000. Additional upgrades available in the configurator.
Popular Optional Upgrades
- Pitched Roof +$2,000
- Deck / Terrace +$3,000
- External Gutters +$1,500
- Underfloor Insulation +$3,000
- Extra Room / Bedroom +$1,000
- Large Window / Glass Curtain Wall +$300
- Bathroom LED Mirror & Lighting +$500
Available Upgrades
Enhance your Studio with these optional structural upgrades and add-ons.
Pitched Roof
Upgraded pitched roof for improved water runoff and appearance.
Deck / Terrace
Timber deck attached to the unit, includes balustrade handrails.
External Gutters
Rainwater gutter and downpipe system for water collection.
Large Window / Glass Curtain Wall
Oversized window or glass curtain-wall upgrade (per window).
Electric Curtain System (6.3m)
Motorised curtains for the living room (6.3m base; scales with length).
Underfloor Insulation
Additional underfloor (bottom) insulation for colder climates.
Deluxe Specification
Standard on every home — engineered stone benchtops, SPC flooring and double glazing included. Additional upgrades available in the configurator.
| Feature | Deluxe SpecificationDeluxe as standard |
|---|---|
| Structure & Shell | |
| Frame | Galvanized steel frame (main frame 6mm), electrostatic spraying/straight white plastic powder |
| Roof | EPS insulation material, 8mm glass fiber reinforced plastic (FRP), waterproof coating |
| Walls | 75mm metal embossed plate + EPS insulation board, bamboo fiber interior decorative panels |
| Doors & Windows | |
| Entrance Door | Thermal break aluminum sliding door, folding screen doorWidened door +$500 |
| Bedroom Door | Aluminum-wood door |
| Windows | Thermal break aluminum floor-to-ceiling windows with metal screens, top-hung outward windows, glass curtain wall for living room |
| Interior & Lighting | |
| Flooring | Waterproof and insect-proof durable fiber cement board, SPC waterproof stone plastic wood-grain flooring, polyurethane insulation |
| Lighting | LED ultra-thin ceiling light, downlightsBathroom LED mirror & lighting upgrade +$500 |
| Kitchen & Bathroom | |
| Kitchen | L-shaped cabinets, wall cabinets, silica-free marble countertop, stainless steel sink, faucetKitchen island available on 30ft/40ft |
| Bathroom | Wet and dry separation, AU standard exhaust fan, sintered stone integrated tray, AU standard toilet, rainfall showerhead, frosted glass door |
| Systems & Weight | |
| Electrical | AS/NZS compliant purple sheath cables (PVC conduits), power distribution board |
| Total Weight | ~4,700 KG |
Structure & Shell
Frame
Galvanized steel frame (main frame 6mm), electrostatic spraying/straight white plastic powder
Roof
EPS insulation material, 8mm glass fiber reinforced plastic (FRP), waterproof coating
Walls
75mm metal embossed plate + EPS insulation board, bamboo fiber interior decorative panels
Doors & Windows
Entrance DoorWidened door +$500
Thermal break aluminum sliding door, folding screen door
Bedroom Door
Aluminum-wood door
Windows
Thermal break aluminum floor-to-ceiling windows with metal screens, top-hung outward windows, glass curtain wall for living room
Interior & Lighting
Flooring
Waterproof and insect-proof durable fiber cement board, SPC waterproof stone plastic wood-grain flooring, polyurethane insulation
LightingBathroom LED mirror & lighting upgrade +$500
LED ultra-thin ceiling light, downlights
Kitchen & Bathroom
KitchenKitchen island available on 30ft/40ft
L-shaped cabinets, wall cabinets, silica-free marble countertop, stainless steel sink, faucet
Bathroom
Wet and dry separation, AU standard exhaust fan, sintered stone integrated tray, AU standard toilet, rainfall showerhead, frosted glass door
Systems & Weight
Electrical
AS/NZS compliant purple sheath cables (PVC conduits), power distribution board
Total Weight
~4,700 KG

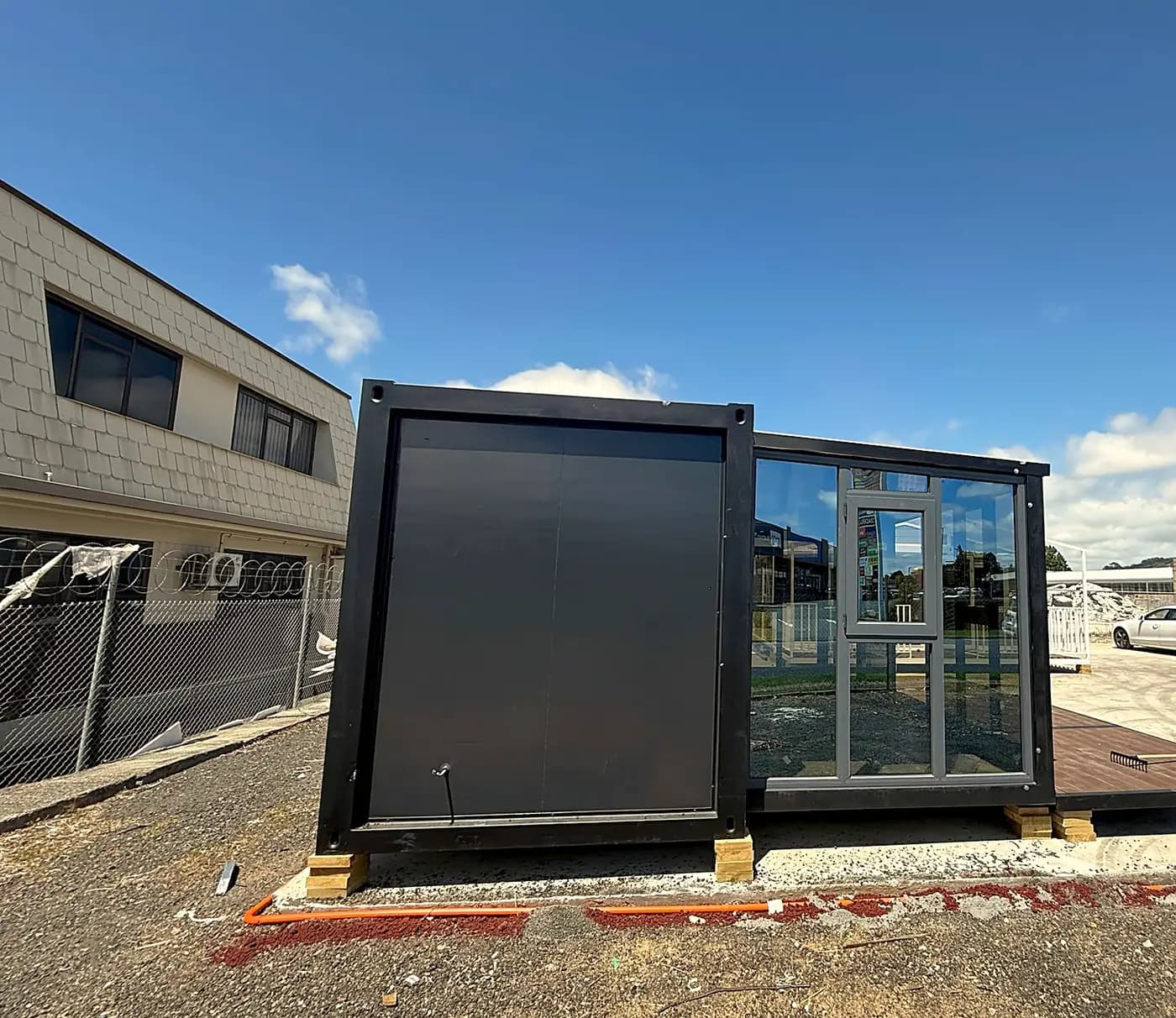

Folded to finished
Design & Reality
From the 3D layout concept to the finished home.
Design

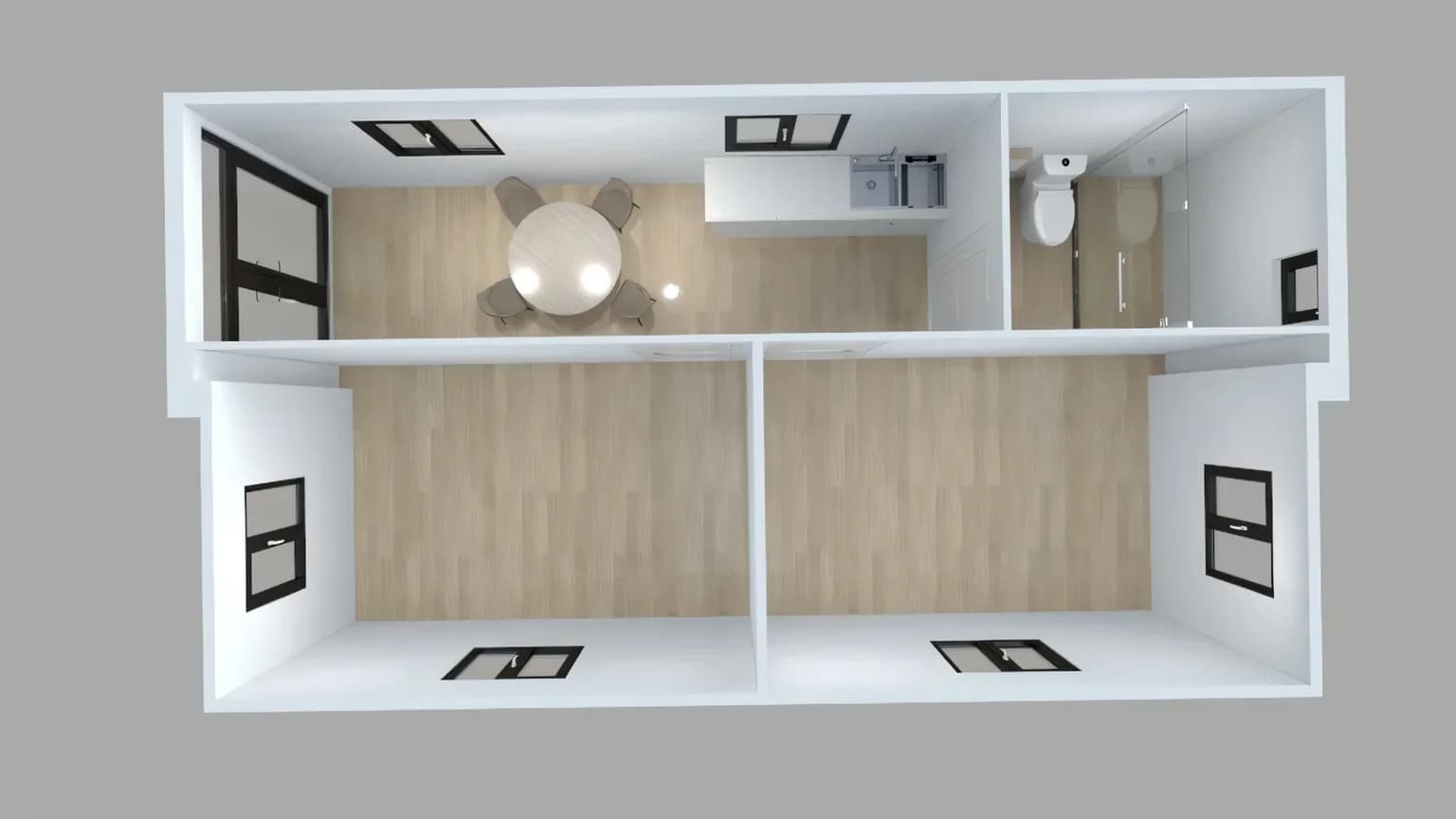

Interior layout concepts — furnishing & configuration are illustrative and can be customised.
Studio layouts are highly customisable — talk to us to tailor the layout for a home office, bach, or guest room.
Reality

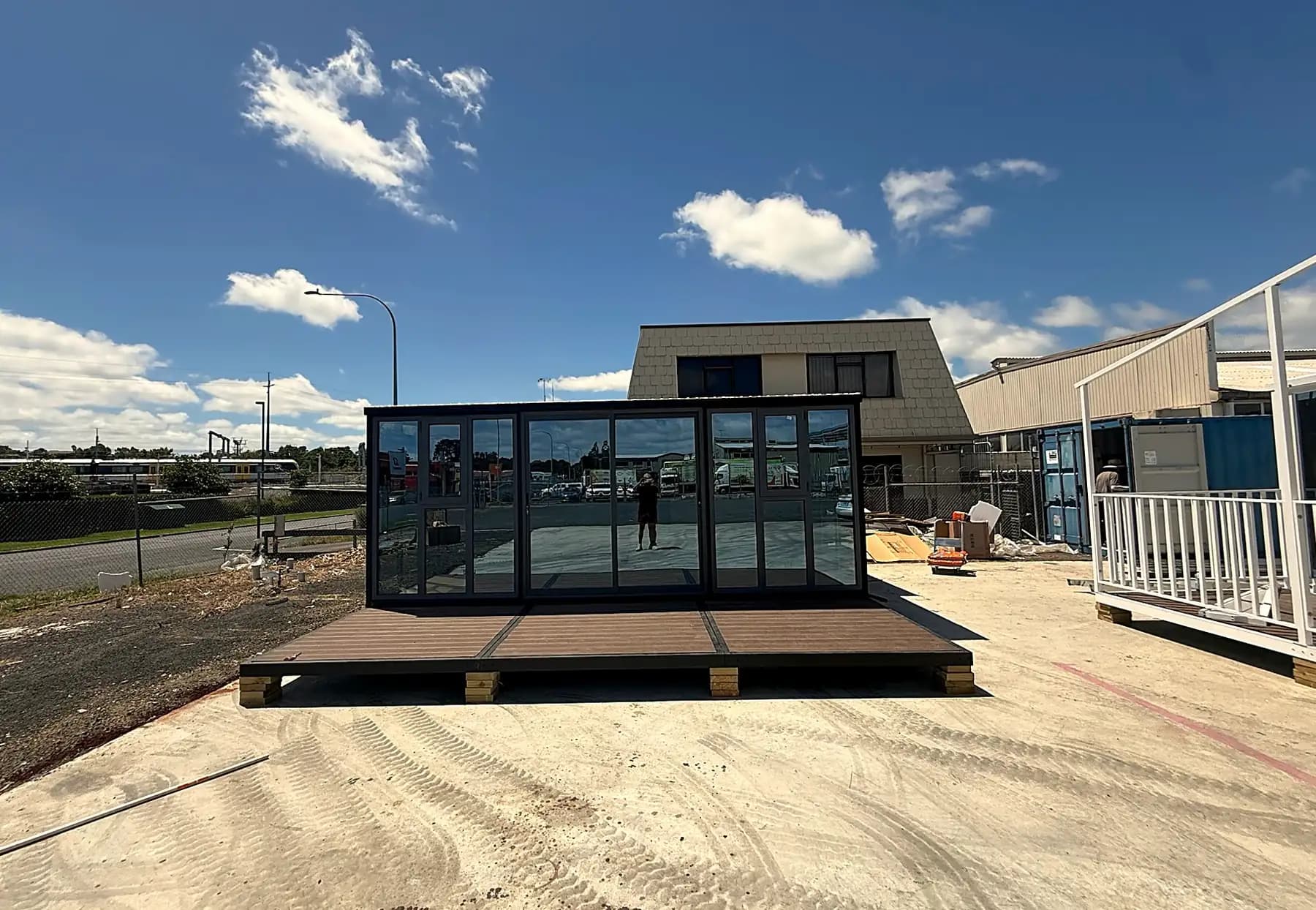

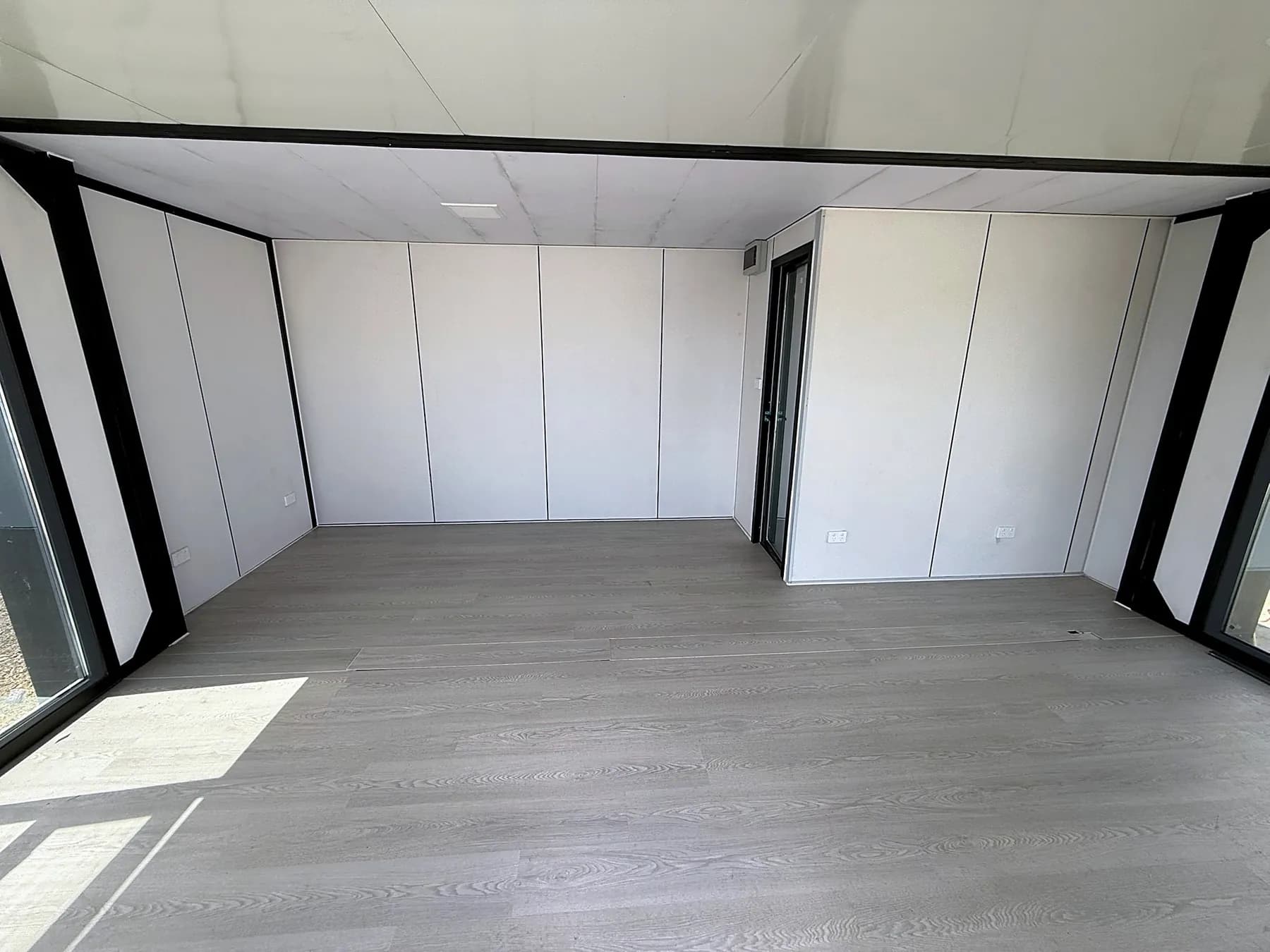

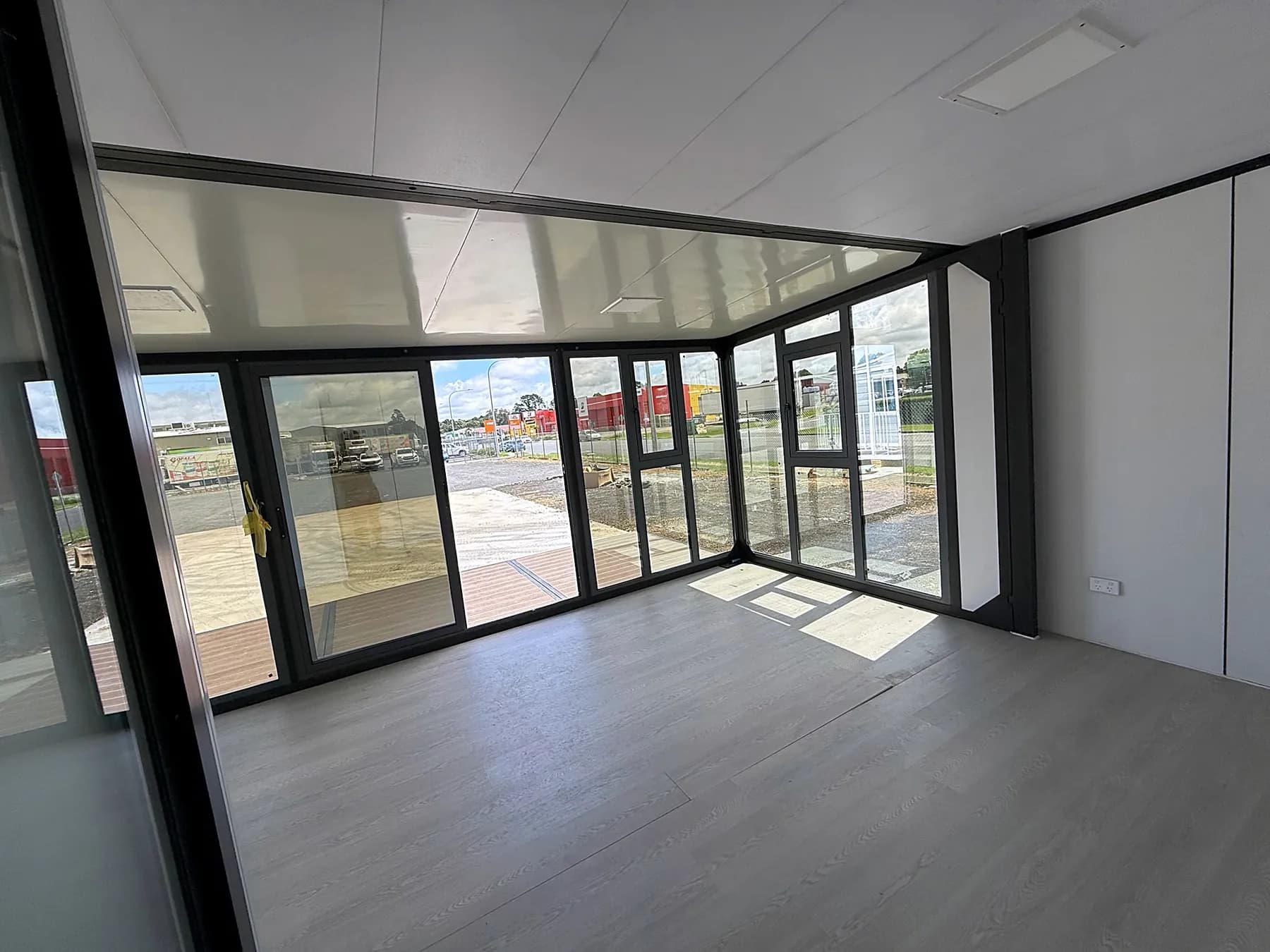

Finished homes as built — photographs of completed units, not renders.
